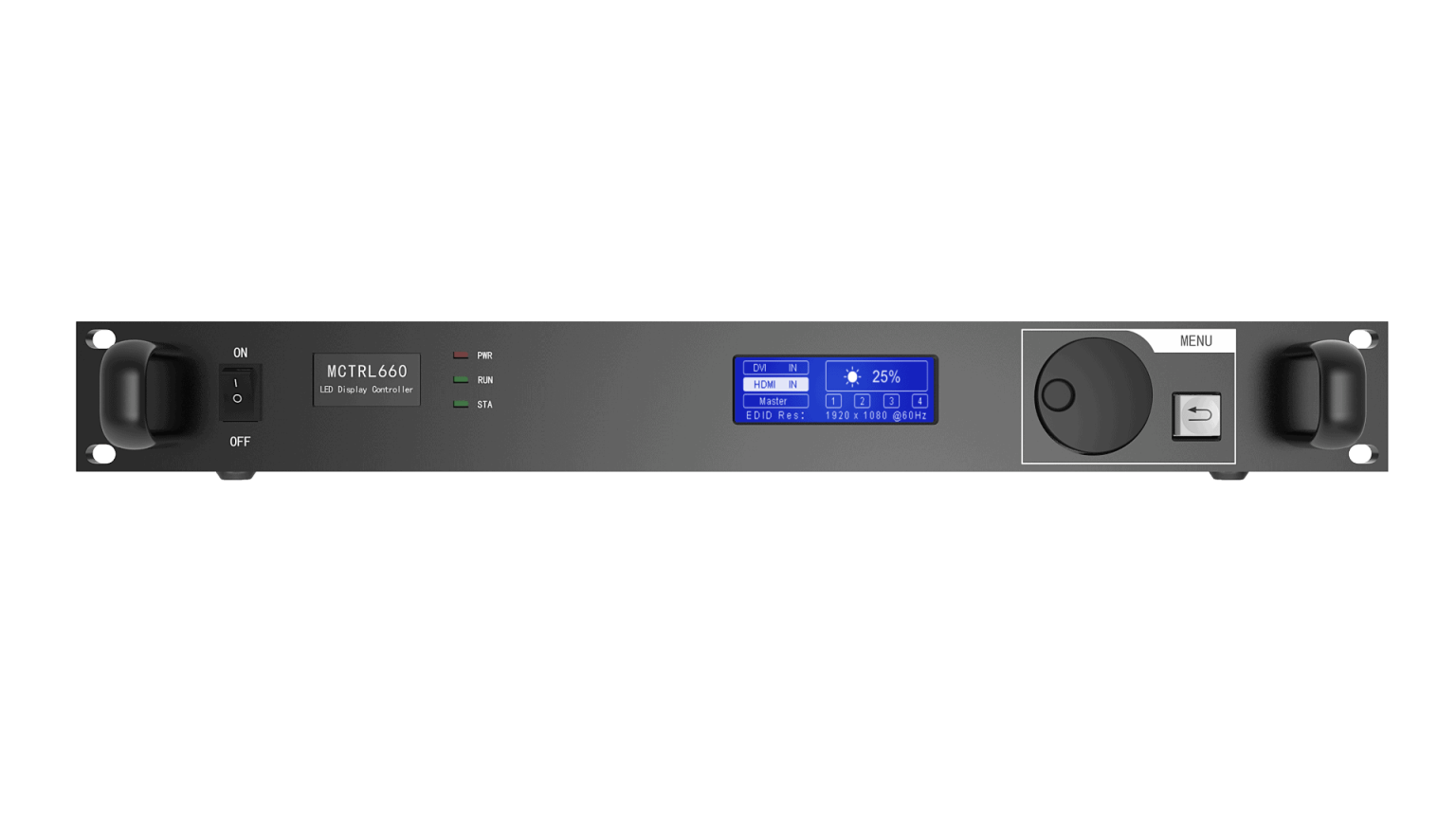

MCTRL660 is a controller developed by NovaStar with a single-unit loading capacity of1920×1200@60Hz. MCTRL600 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.
- 12bit/10bit HDMI input, DVI input
- HDMI.DVI loop output for cascading or monitoring
- HDCP Blue-ray directly input
- 8bit video source loading capacity of 1920×1200@60Hz.
- 12bit video source loading capacity of 1440×900@60Hz
Support for custom resolutions: 3840 pixels of H resolution, 3840 pixels of V resolution
Supports cascading for control of multiple units
Support for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4
Certifications, CE, RoHS, FCC, UL, EAC
Features

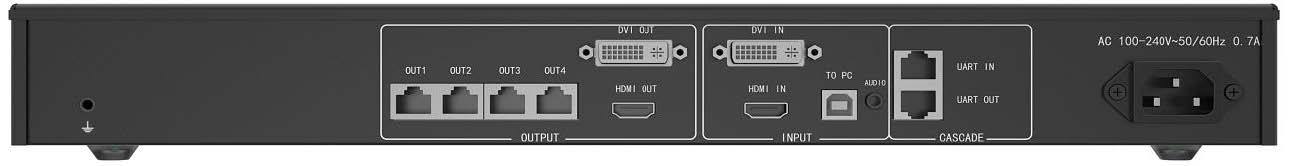

- 1 × DVI input
- 1 × HDMI input
- 4 × GigabitEthernet outputs
- Supports the new generation of NovaStar calibration technology, which is fast and efficient.
- Supports resolutions up to 1920×1200@60Hz and downward compatibility.
- Multiple controllers can be cascaded.
- Supports 18-bit grayscale processing and display.
- Manual screen brightness adjustment, which is fast and convenient.
- Quick screen configuration without using a computer.
- Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
- Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
- Supports a variety of video formats.
