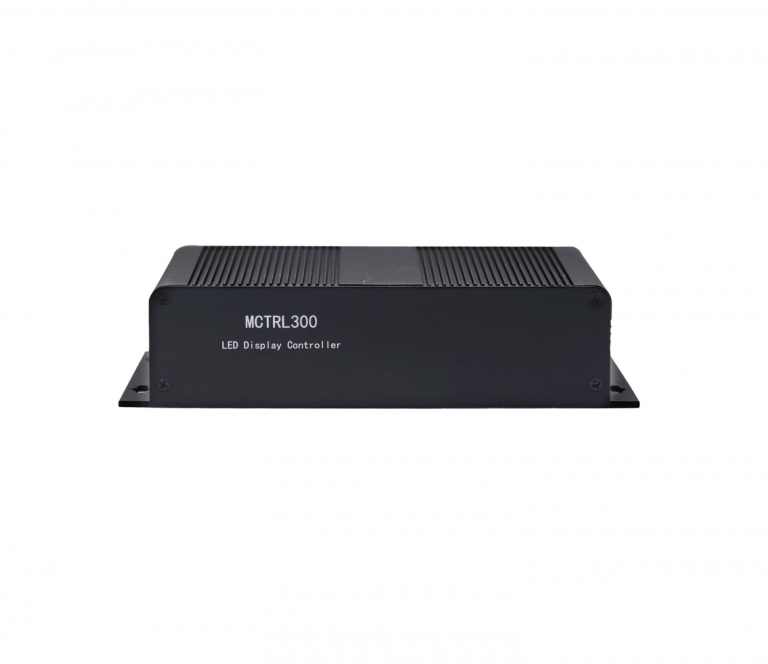

NovaStar MCTRL300
Independent Controller
MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.
$ 187.00 USD
Cart
0

Description

MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.

- DVI video input

- Audio transmission

- Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup

- USB port control, for cascading and control of multiple units1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz,1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840;

Maximumheight:38401 light sensor interface, adjust the screen brightness automatically

Independent power supply

Certifications: CE, RoHS, EAC, FCC, IC

Features

- 1 × DVI input

- 1 × audio input

- 1 × type-B USB control port

- UART control ports to cascade devices for uniform control.

- Dual Ethernet outputs.

- Supports the new generation of NovaStar calibration technology, which is fast and efficient.

- 1 × light sensor connector.

- Supports resolutions up to 2048×668@60Hz and downward compatibility.

- Supports a variety of video formats.

Download Spec Sheets
