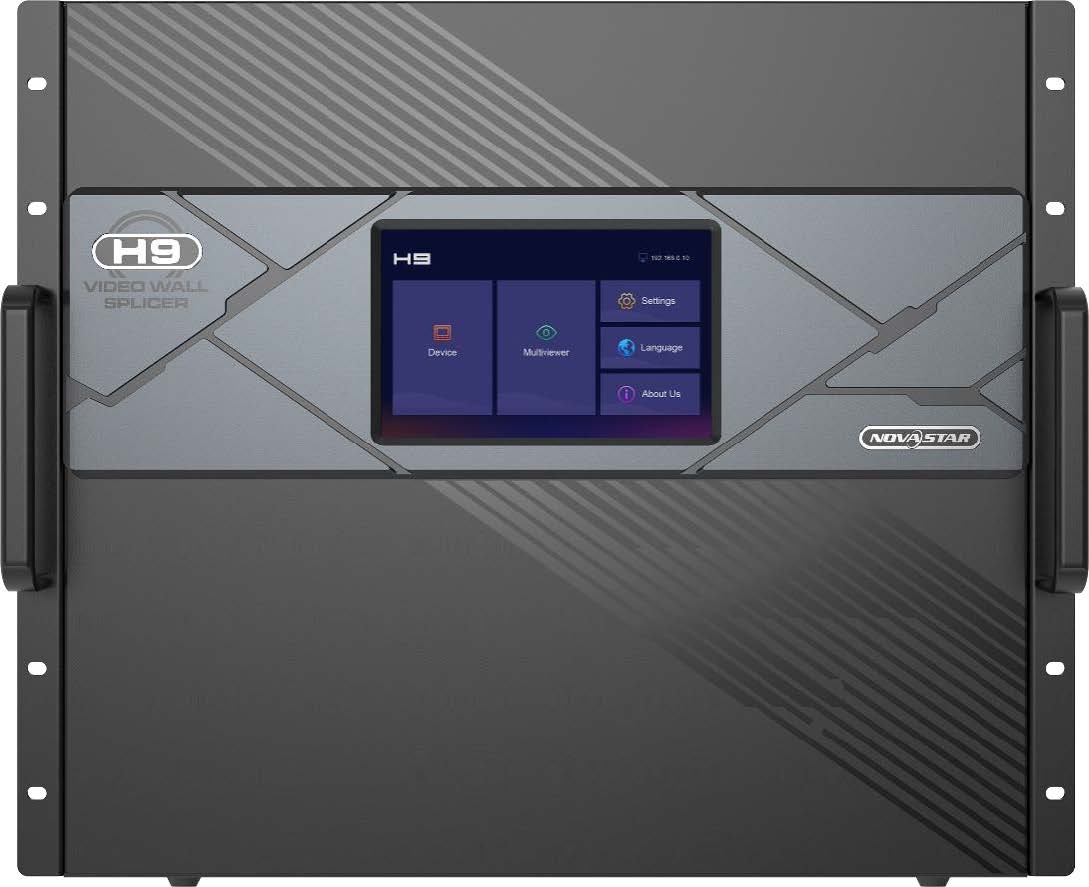

NovaStar H9
Video Wall Splicer

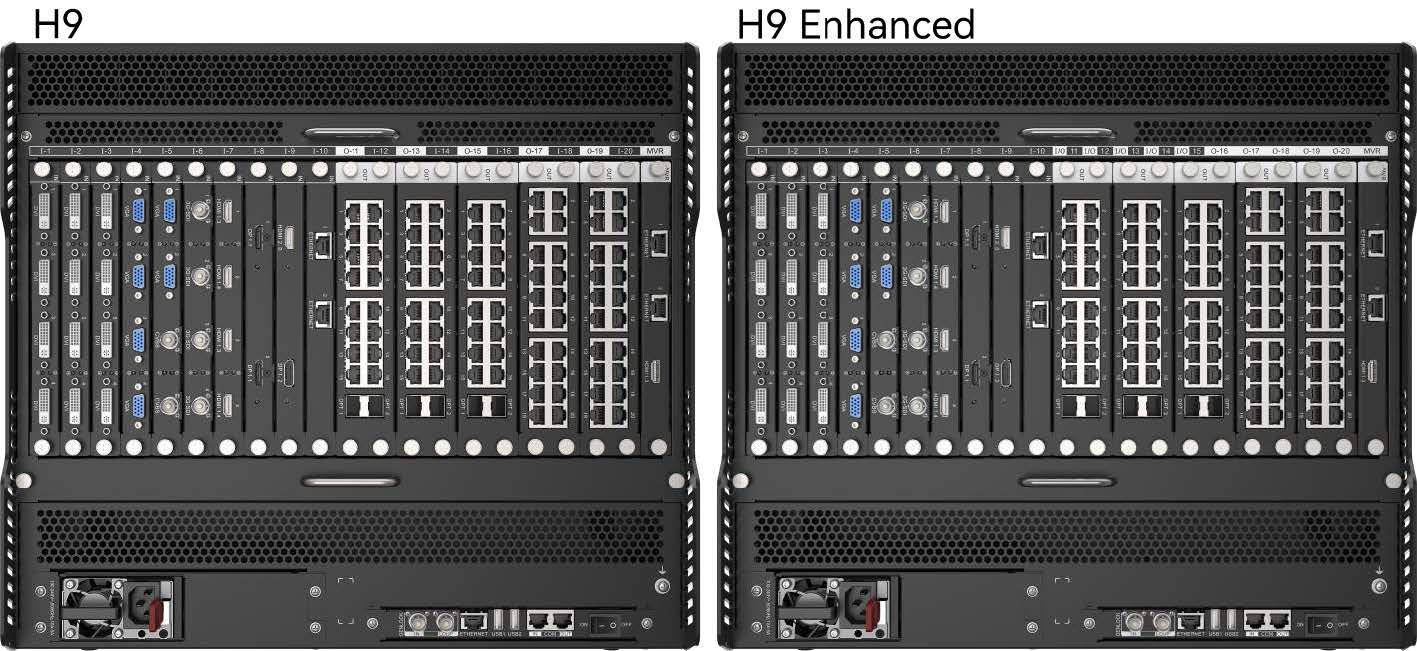

The H9 is NovaStar’s newest generation of video wall splicer, featuring excellent image quality and designed especially for fine-pitch LED screens. The H9 can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The whole unit adopts a modular and plug-in design, and allows for flexible configuration and hot swapping of input and output cards.
$ 2,184.00 USD
Cart
0

Description

Thanks to excellent feature sand stable performance, the H9can be widely used in a variety of applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake prediction, enterprise management, metallurgy of steel, banking and finance, national defense, public security traffic management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage rental applications.

Features

- Three kinds of LED 4K sending cards

H_20xRJ45 sending card loads up to 13,000,000 pixels.

H_16xRJ45+2xfiber sending card loads up to 10,400,000 pixels and provides two OPT ports that copy the outputs on Ethernet ports.

H_4xfiber sending card loads up to 20,800,000 pixels and supports three working modes, including independent, copy and backup.

The three cards mentioned above cannot be used together to load the same screen.

- Multi-capacity configuration on a single card slot

4x 2K×1K@60Hz

2x 4K×1K@60Hz

1x 4K×2K@60Hz

- Simple screen configuration using a single card and connector

- Online status monitoring of all input and output cards

- Hot-swappable input and output cards

- H_2xRJ45 IP input card supports up to 512 IP camera inputs and input mosaic.

- Auto decryption of HDCP-encrypted sources

- Decimal frame rates supported

- HDR10 and HLG processing
