SkyPanel HQ Series

Delivering unrivalled visual excellence with cutting-edge features and superior performance.

Reimagining MicroLED Displays

Unprecedented Visual Quality

Experience SkyPanel HQ Series displays like never before. Our advanced Chip on Board (COB) technology, common cathode technology, and intelligent image processing eliminate blooming, ensuring unparalleled visual excellence.

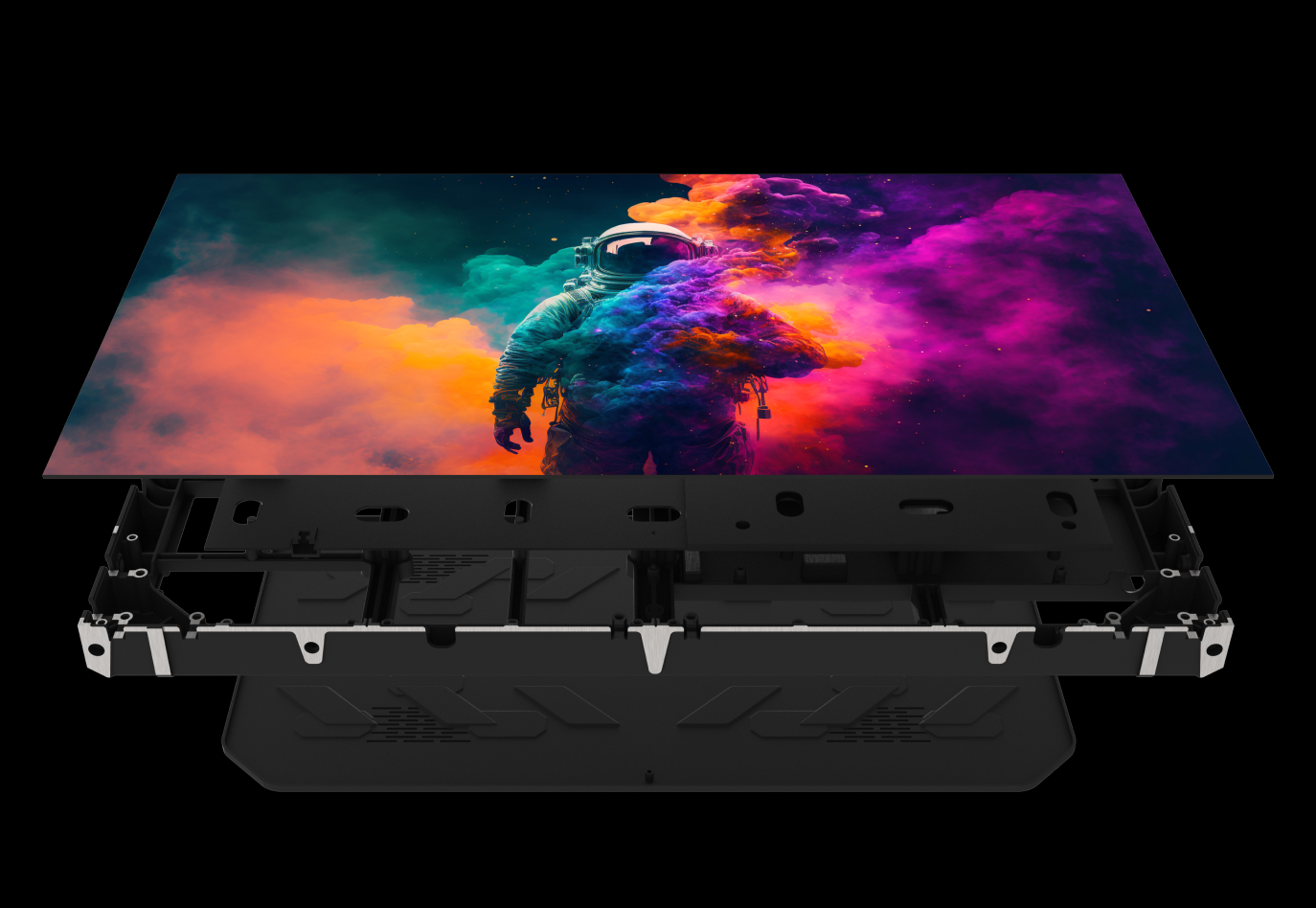

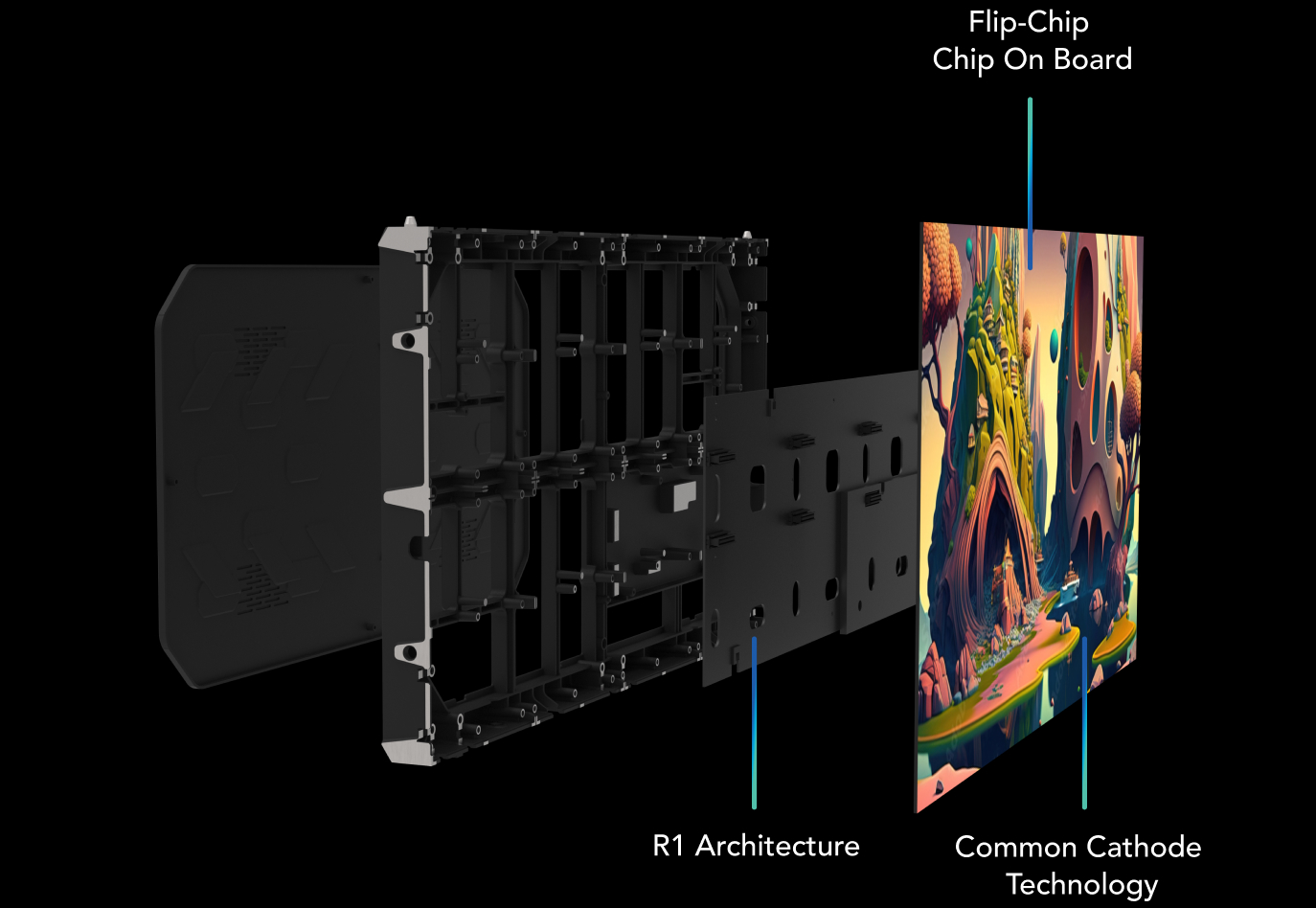

Innovation in every layer

Integrated for Peak Performance

Our R1 Architecture seamlessly integrates the Novastar Armor series receiver card with our hub card and power supply, delivering unmatched performance and serviceability in the world of LED displays.

Unleashing Visual Brilliance

Consistently Stunning

Through our specialized LED manufacturing expertise and the creation of an ultra-rich matte black coating, we've birthed a display that consistently delivers breathtakingly deep black levels, ensuring an unparalleled visual experience.

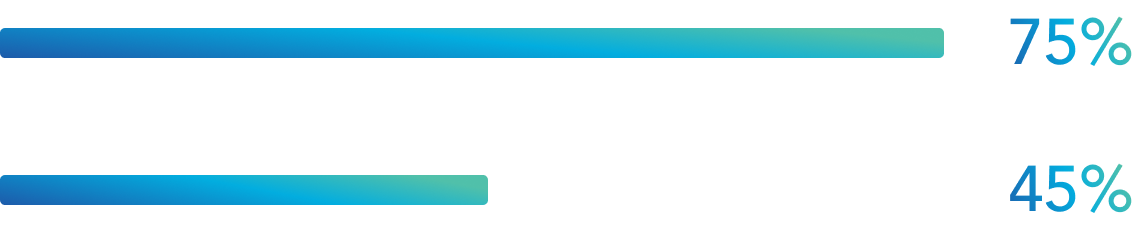

Elevating Color Precision

Perfecting Every Pixel

Our advanced calibration architecture, enhanced LED color matching, and module calibration bring unparalleled color accuracy to SkyPanel HQ, empowering you with exceptional clarity and screen expansion capabilities.

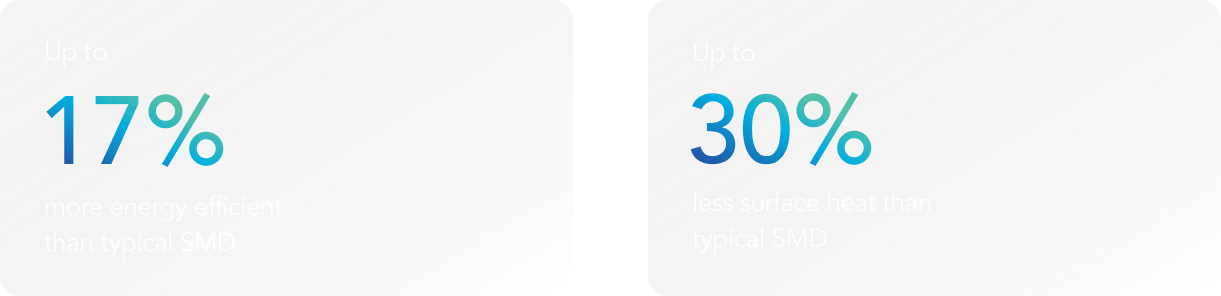

Leading the Way in LED Cooling

Efficient, Cool, and Ready for any Duty

SkyPanel HQ Series boasts the coolest surface temperature in LED displays, all thanks to the common cathode's energy efficiency. It's your reliable choice for continuous operation.

Up to

100,000:1

Contrast Ratio

Up to

1,200 nits

Brightness

Up to

7,680 Hz

Refresh Rate

Up to

100,000:1

Contrast Ratio

Up to

1,200 nits

Brightness

Up to

7,680 Hz

Refresh Rate

Up to

100,000:1

Contrast Ratio

Up to

1,200 nits

Brightness

Up to

7,680 Hz

Refresh Rate

Visible light spectrum

Edge-to-Edge Visual Infinity

Pixel Perfection

Experience a visual masterpiece with SkyPanel HQ's sumptuous matte black-coated modules that ensure edge-to-edge perfection, rendering every detail with exceptional depth and contrast, creating an immersive experience free from distracting white edges.

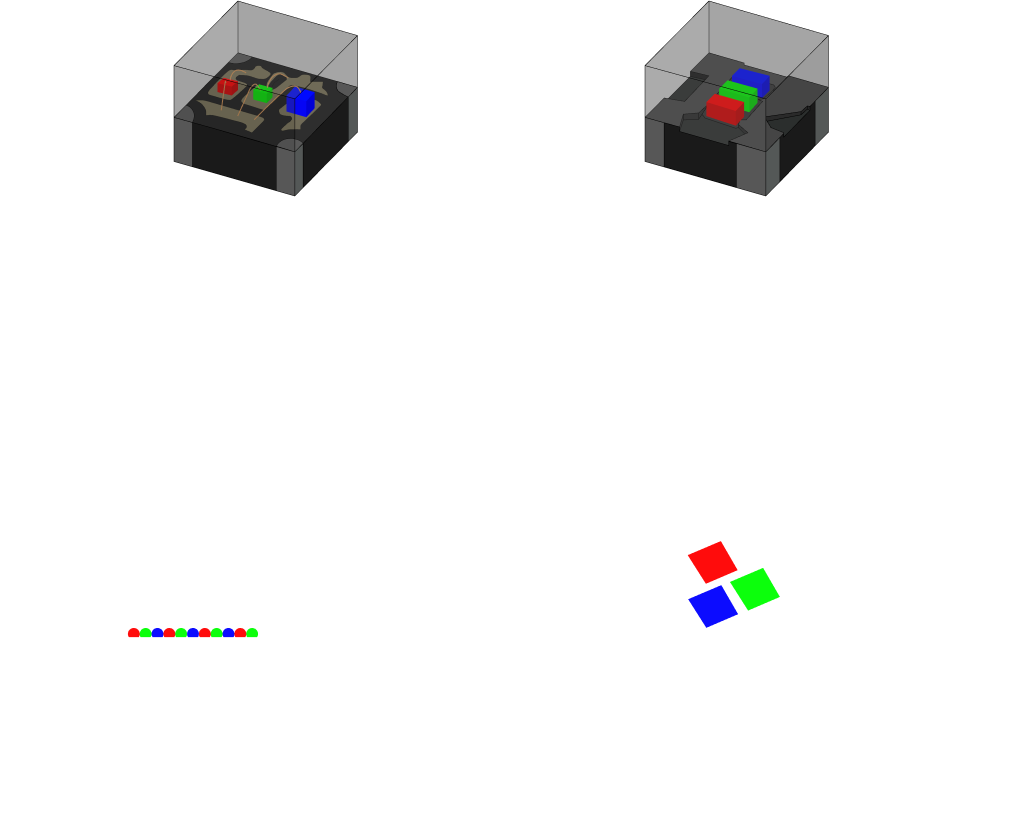

Flip Chip Technology

Reinventing LED Packaging for Enhanced Performance

This innovative packaging method, which involves mounting the LED chip face-down, unlocks superior performance, improved thermal management, and improved efficiency, making it a game-changer in LED manufacturing.

Specifications Table

Model HQ-COB0.7 HQ-COB0.9 HQ-COB1.2 HQ-COB1.5 HQ-COB1.8
Pixel Pitch (mm) 0.75 0.9375 1.25 1.56 1.875
Brightness (nits) 800 ~ 1000
Cabinet Resolution (px) 768 x 432 640 X 360 480 X 270 384 X 216 320 X 180
Color Contrast 1,000,000 : 1
Refresh Rate (Hz) 3,840Hz
Viewing Angle 165°/165°
Viewing Distance (m) ≥0.5 ≥1 ≥1.2 ≥1.5 ≥1.8
Working Temperature (°C/°F) -20℃ ~ 60℃ / -4 ~ 140°F
IP Rating IP42
Average Power Consumption (W/m²) 360 ~ 400 360 ~ 400 360 ~ 400 360 ~ 400 360 ~ 400
Maximum Power Consumption (W/m²) 800 800 800 800 800
Model HQ0.9 HQ1.25 HQ1.5 HQ1.875 HQ2.5 HQ3.7
Pixel Pitch (mm) 0.935 1.25 1.5 1.875 2.5 3.7
Brightness (nits) 600 ~ 800 1200/4000 1200 / 3000 1200 / 3000
Cabinet Resolution (px) 638 x 360 480 x 270 384 x 216 320 x 180 240 x 136 160 x 90
Pixel Density (pixel/m²) 1,137,778 640,000 409,600 284,444 160,000 70,756
Color Contrast 100,000 : 1 / 10,000:1
Refresh Rate (Hz) 3,840 / 7,680 Hz
Viewing Angle 140°/140°
Viewing Distance (m) ≥0.5 ≥1 ≥1.2 ≥1.5 ≥1.8 ≥1.8
Working Temperature (°C/°F) -10 ~ 60 °C / 14 ~ 140 °F
IP Rating IP42
Average Power Consumption (W/m²) 250-400
Maximum Power Consumption (W/m²) 800
